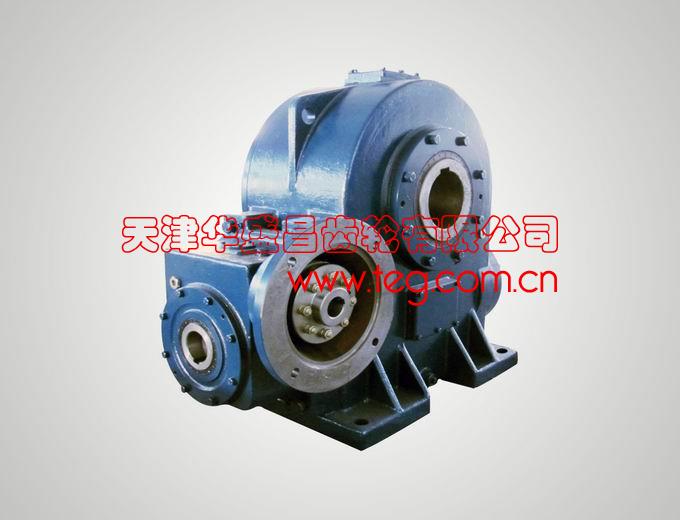

Products features:
These series of reducers are used for the rubber tire curing machines. As they are using the high precision plane enveloping toroidal worm transmission form, they have the following advantages: Reliable working, compact dimensions, good looking, low noise level as well as high transmission efficiency.
Products specifications:
Model | Center Distance (mm) | Ratio | Input Power (kW) | Output Peak Torque (Nm) | Input Speed (r/min) |
9TV250B | 250 | 93 | 11 | 30810 | 900 |
10TU250B | 250 | 80 | 11 | 26500 | 1326 |
35TU250A | 250 | 80 | 11 | 26500 | 680 |
4TV265 | 265 | 93 | 16 | 37000 | 890 |
5TV265 | 265 | 93 | 15 | 37000 | 980 |
5TV265A | 265 | 93 | 22 | 37000 | 1465 |
5TV265C | 265 | 93 | 15 | 37000 | 980 |
1TU304.8 | 127/304.8 | 20*25 | 16 | 124500 | 1348 |
